3i Sky Arrow

Two-seat tandem, high wing, carbon fibre pusher (micro)light aircraft.

Manufacturer:	3I (Iniziative Industriali Italiane S.p.A.)
Country:	Italy
Versions:	450TH, 450TS 480TS 500TF 600 Sport 650TC, 650TCN, 650TCS, 650TCNS, 650 ERA 710RGC, 710RGCN, 710PlusC, 710PlusCN 1450L (kit), 1450TC
Occupants:	2
Length:	7.60 m
Height:	2.56 m
Wingspan:	9.68 m
Powerplant:	450/480/600: one Rotax 912 ULS 500TF: one Rotax ... 650TC/TCN/ERA: one Rotax 912 A2/F2 650TCS/TCNS/710RG: one Rotax 912 S2 1450L: one Rotax 912 ULS2 1450TC: one Rotax 914 UL3
Max. speed:	450/480: 200 km/h 600: 204 km/h 650: 194 km/h
Range:	450/480: 630 km 600: 927 km 650: 610 km
Service ceiling:	4116 m (13,500 ft)
Weight:	450: empty 286 kg, max. take-off 450 kg 480: empty 298 kg, max. take-off 480 kg 600: empty 380 kg, max. take-off 599 kg 650: empty 400 kg, max. take-off 650 kg 710: empty 420 kg, max. take-off 710 kg
First flight:	13 July 1992
Production:	650TC: C001-C008 (poss. engine mod. to TCS) 650TCN: CN001 (poss. engine mod. to TCNS) 650TCS: CS010-... 650TCNS: CNS009-... 710RG: RG001

Click on the photos for an enlargement.


c/n 28 3i Sky Arrow 450TH

	PH-2W9 no titles 05-07-1997 Gilze-Rijen (EHGR)

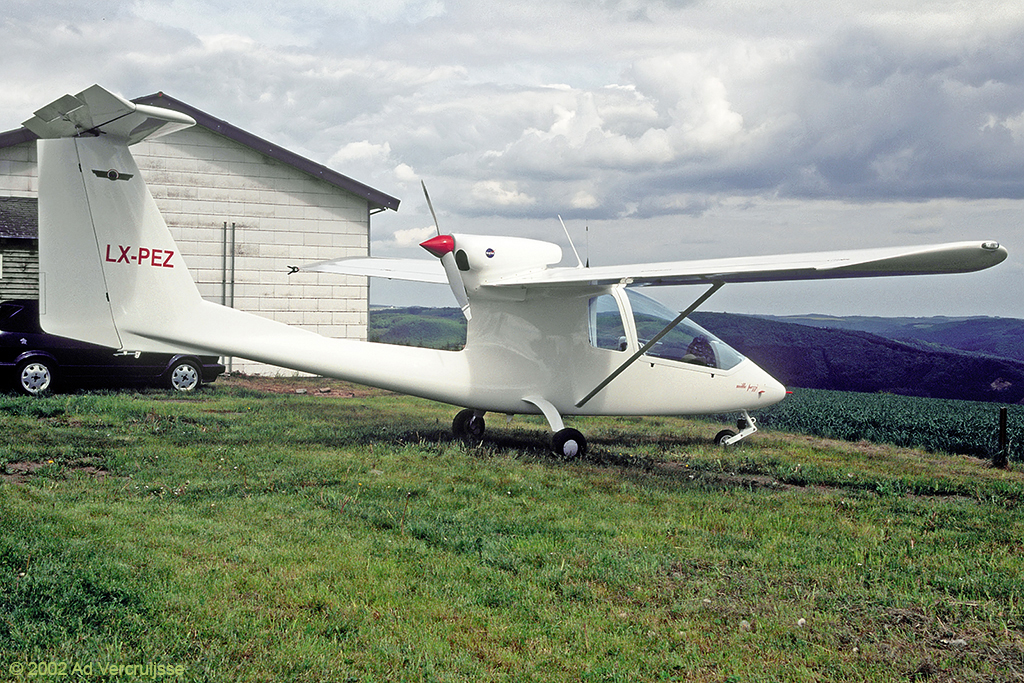

c/n K118 3I-Meteor Sky Arrow 650T

	LX-PEZ "Mille Pezzi" AA ? 19-05-2002 Noertrange (ELNT)
